FHEVM Dice Game DApp 🎲

Brief and Full summary

A privacy-preserving dice guessing game built with Zama's FHEVM (Fully Homomorphic Encryption Virtual Machine) technology. Players can make encrypted guesses and roll dice with complete privacy - only they can decrypt their own results.

CDN Based Project Structure

GitHub Repository to this project
Note this project structure is for CDN integration.

fhevm-dice-dapp-cdn/
├── contracts/             # Smart contracts
├── frontend/              # React application
├── tasks/                 # Hardhat tasks
├── test/                  # Contract tests
├── deploy/                # Deployment scripts
├── hardhat.config.ts
├── package.json
└── README.md

SDK Based Project Structure

GitHub Repository to this project
Note this project structure is for SDK integration.

hello-fhevm-dice-sdk/
├── LICENSE
├── README.md
├── package.json
├── package-lock.json
├── tsconfig.json
├── scripts/
│
└── packages/
    ├── fhevm-hardhat-template/    # Smart contracts & deployment
    ├── fhevm-react/               # FHE encryption utilities
    ├── postdeploy/                # Post-deployment scripts
    └── site/                      # React Frontend application

Game Overview

The FHEVM Dice Game is a privacy-first gambling DApp where:

Players pick a number (1-6) or let the system choose randomly
Entropy is generated through mouse movement for true randomness
Encryption happens client-side using FHEVM SDK
Computation occurs on-chain with encrypted values
Results remain private until players decrypt them

Privacy Features

Encrypted Guesses: Your guess is encrypted before submission
Encrypted Dice Rolls: Generated on-chain using encrypted seeds
Private Results: Only you can decrypt your game outcomes
Verifiable Fairness: Cryptographic proofs ensure game integrity

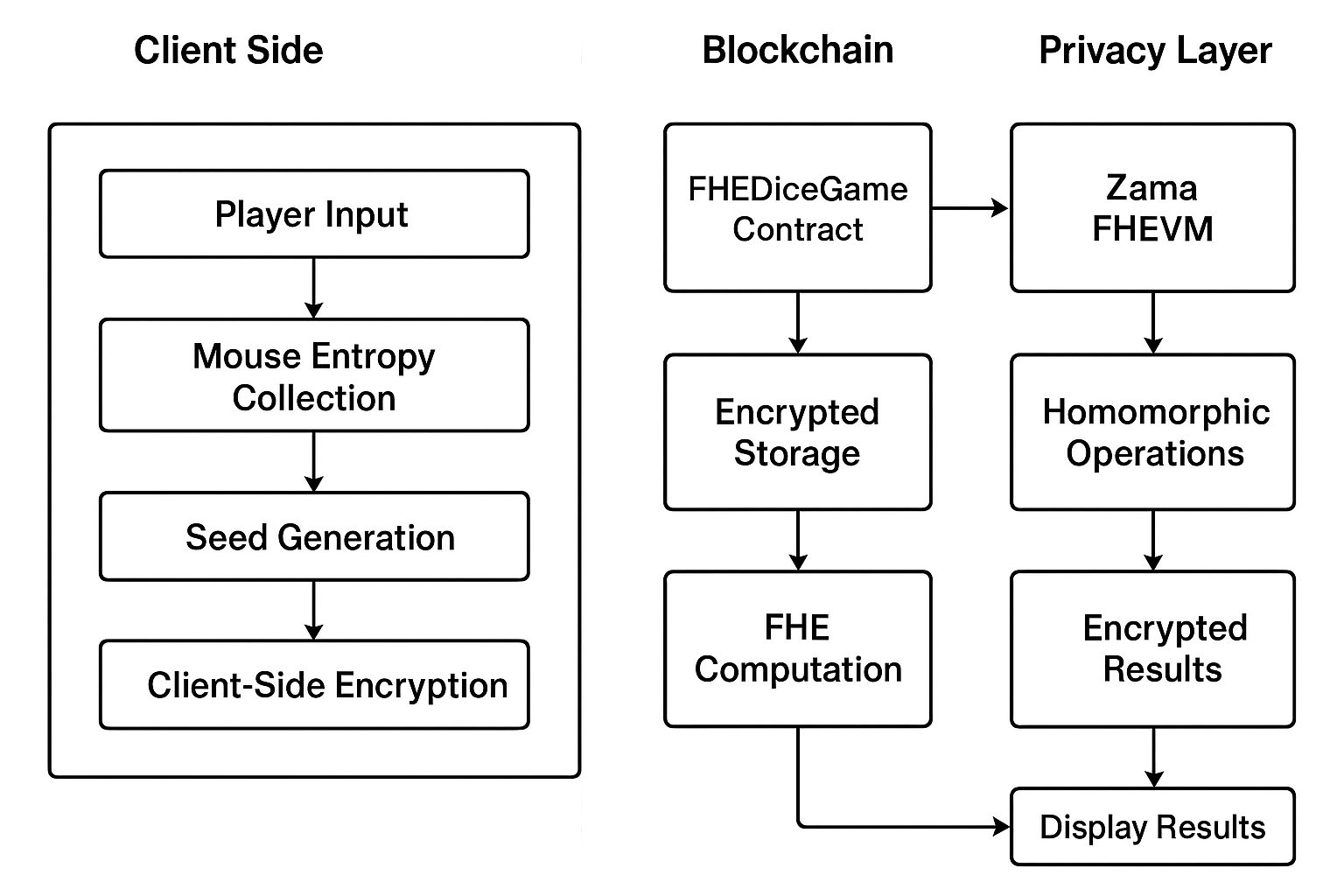

Architecture Overview

Flowchart

Complete Encryption & Computation Flow

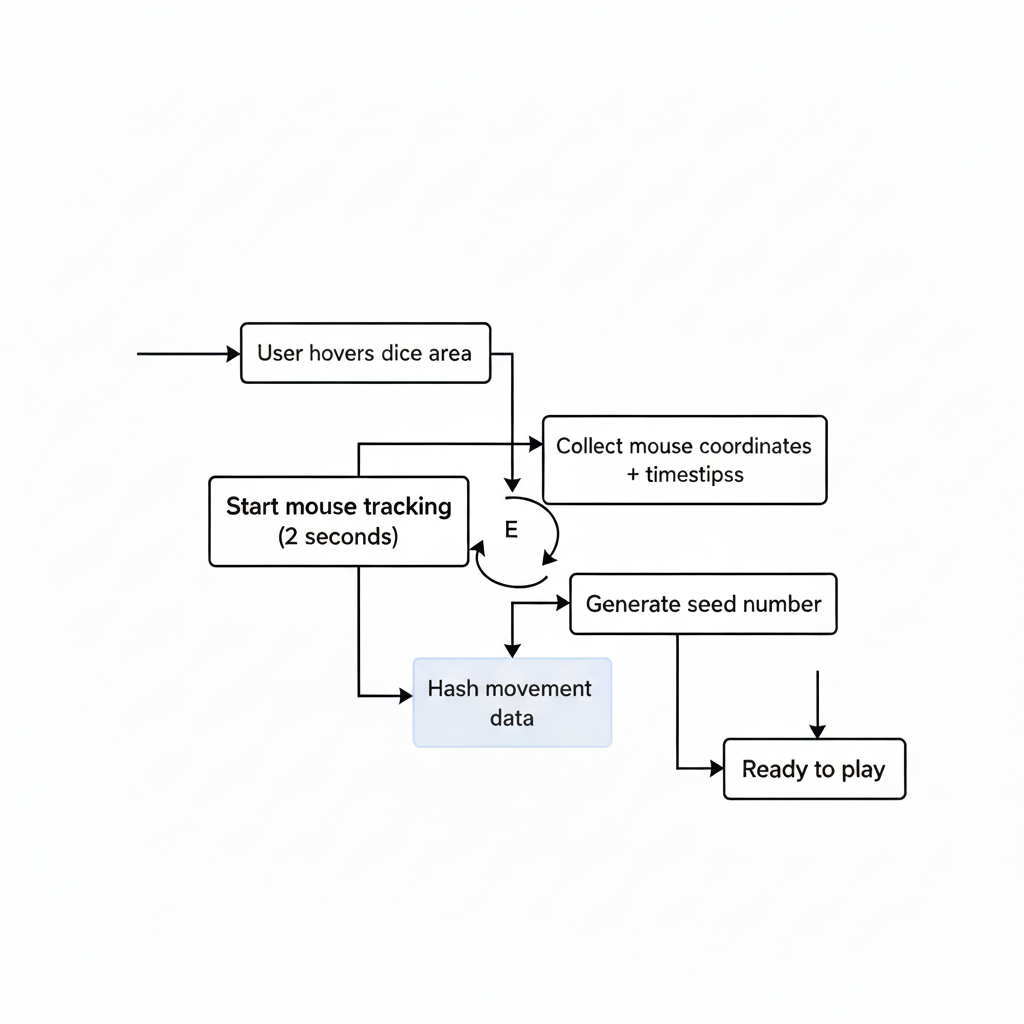

1. Entropy Collection & Seed Generation

Flowchart

Implementation Details:

// Mouse entropy collection in PlayDice.js
const startEntropyCapture = () => {
  const onMove = (e) => {
    const x = e.clientX - rect.left;
    const y = e.clientY - rect.top;
    entropyRef.current.push(`${x},${y},${e.timeStamp}`);
  };

  // Collect for 2 seconds
  setTimeout(() => {
    const data = entropyRef.current.join('|');
    const hash = hash32(data); // FNV-1a hash
    const seedNum = hash % 1000000007; // Prime modulo
    setSeed(String(seedNum));
  }, 2000);
};

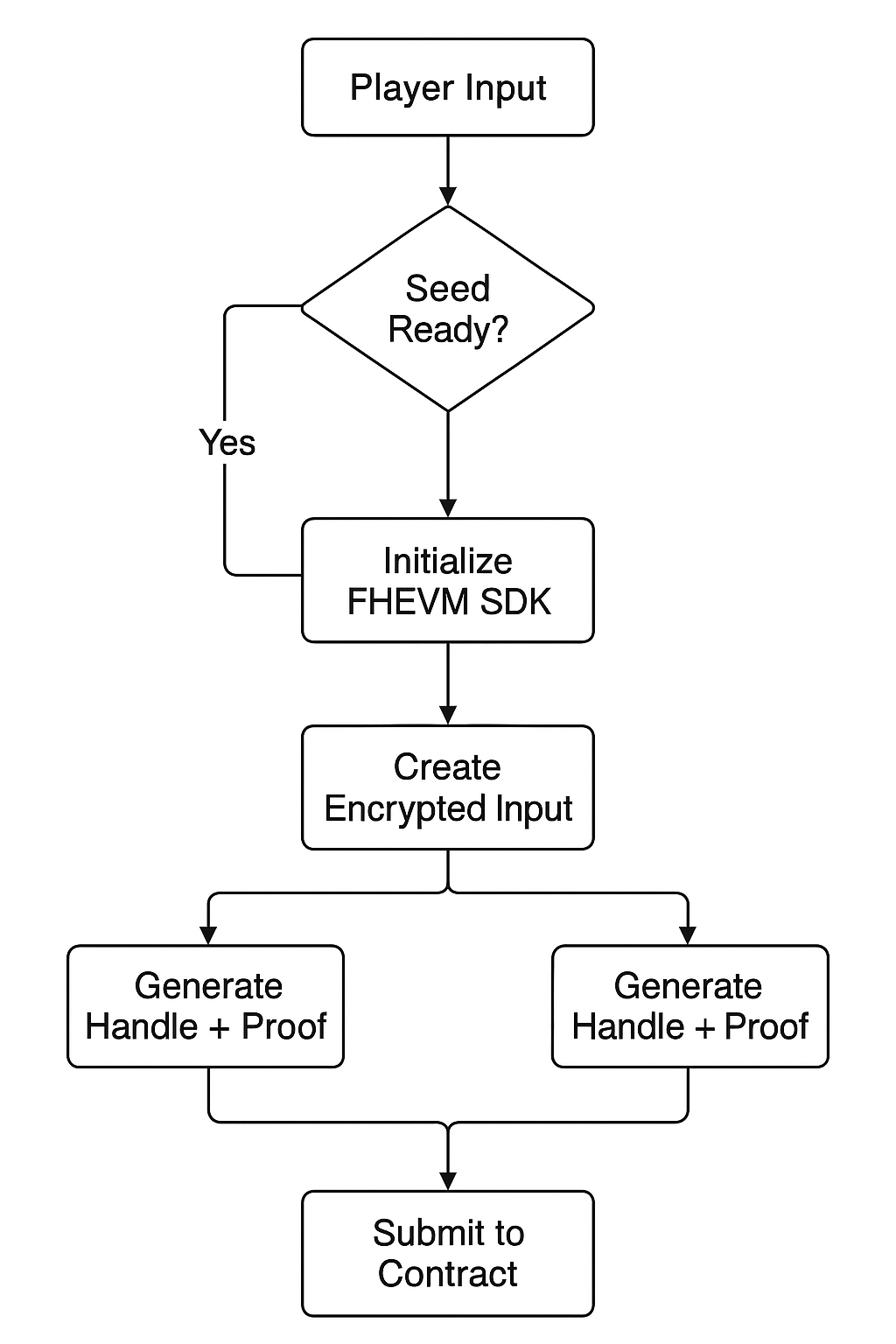

2. Client-Side Encryption Process

Flowchart Code Implementation:

// Encryption in useDiceGame.js hook
const playDice = async (seedNumber, guessNumber) => {
  // Initialize FHEVM SDK
  await window.relayerSDK.initSDK();
  const config = { ...window.relayerSDK.SepoliaConfig, network: window.ethereum };
  const fhevm = await window.relayerSDK.createInstance(config);

  // Encrypt seed
  const seedInput = await fhevm.createEncryptedInput(contractAddress, account);
  await seedInput.add32(seedNumber);
  const seedEnc = await seedInput.encrypt();

  // Encrypt guess
  const guessInput = await fhevm.createEncryptedInput(contractAddress, account);
  await guessInput.add32(guessNumber);
  const guessEnc = await guessInput.encrypt();

  // Submit to contract
  const tx = await contract.playDice(
    seedEnc.handles[0], seedEnc.inputProof,
    guessEnc.handles[0], guessEnc.inputProof,
    { value: entryFee }
  );
};

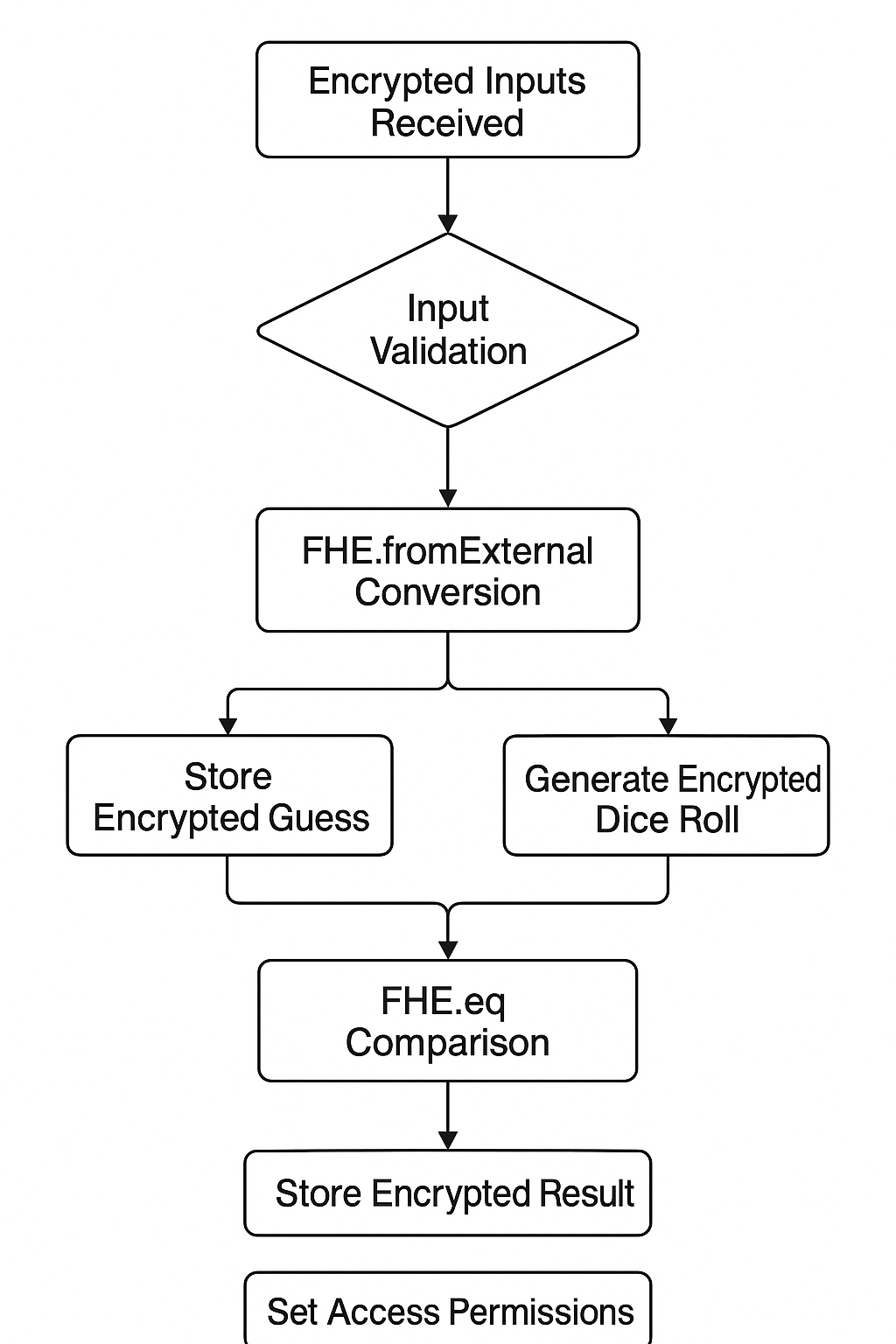

3. On-Chain FHE Computation

Flowchart

Smart Contract Logic:

function playDice(
    externalEuint32 inputSeed,
    bytes calldata seedProof,
    externalEuint32 inputGuess,
    bytes calldata guessProof
) external payable {
    // Convert external encrypted inputs
    euint32 encryptedSeed = FHE.fromExternal(inputSeed, seedProof);
    euint32 encryptedGuess = FHE.fromExternal(inputGuess, guessProof);

    // Store encrypted values
    _playerGuess = encryptedGuess;
    _lastDiceRoll = _generateDiceRoll(encryptedSeed);

    // FHE computation: Check if player won
    _isWinner = FHE.eq(_lastDiceRoll, _playerGuess);

    // Grant decryption permissions
    FHE.allow(_lastDiceRoll, msg.sender);
    FHE.allow(_playerGuess, msg.sender);
    FHE.allow(_isWinner, msg.sender);
}

4. Verifiable Fair Dice Generation

The dice generation uses a deterministic but unpredictable algorithm:

function _generateDiceRoll(euint32 seed) internal returns (euint32) {
    euint32 salt = FHE.asEuint32(42);           // Fixed salt
    euint32 combined = FHE.add(seed, salt);      // Combine with seed
    euint32 mask = FHE.asEuint32(7);            // Mask for modulo
    euint32 masked = FHE.and(combined, mask);    // Apply mask
    euint32 one = FHE.asEuint32(1);             // Add 1 (shift 0-7 to 1-8)
    euint32 result = FHE.add(masked, one);       // Get 1-8 range
    euint32 six = FHE.asEuint32(6);             // Cap at 6
    return FHE.min(result, six);                 // Return 1-6
}

Why This Is Fair:

Deterministic: Same seed always produces same result
Unpredictable: Player provides seed via mouse entropy
Transparent: Algorithm is public on blockchain
Cryptographically Secure: FHE operations prevent manipulation

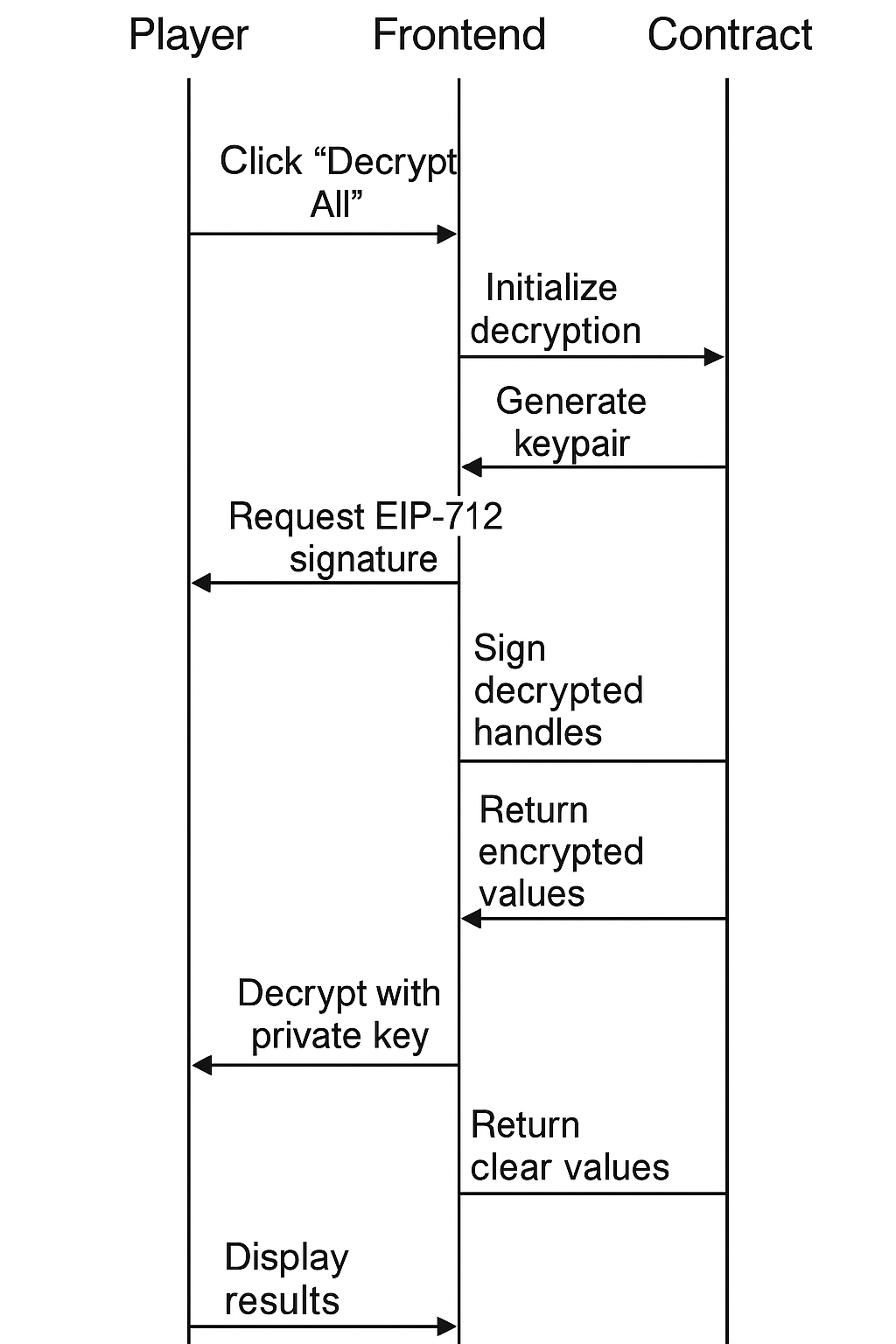

5. Decryption & Result Verification

Flowchart

Decryption Implementation:

const userDecryptValue = async (ciphertextHandle, valueType) => {
  // Initialize FHEVM instance
  const instance = await window.relayerSDK.createInstance(config);

  // Generate keypair for decryption
  const keypair = instance.generateKeypair();

  // Create EIP-712 signature for authorization
  const eip712 = instance.createEIP712(keypair.publicKey, ...);
  const signature = await signer.signTypedData(eip712.domain, eip712.types, eip712.message);

  // Perform decryption
  const result = await instance.userDecrypt(
    [{ handle: ciphertextHandle, contractAddress }],
    keypair.privateKey,
    keypair.publicKey,
    signature,
    ...
  );

  return valueType === 'bool' ? Boolean(result[ciphertextHandle]) : Number(result[ciphertextHandle]);
};

Security & Privacy Features

1. Input Privacy

Player guesses are encrypted client-side
Seeds are generated from unpredictable mouse movement
No plaintext values are transmitted

2. Computation Privacy

All operations happen on encrypted data
Contract never sees plaintext values
Results are computed homomorphically

3. Access Control

// Only the player can decrypt their own results
FHE.allow(_lastDiceRoll, msg.sender);
FHE.allow(_playerGuess, msg.sender);
FHE.allow(_isWinner, msg.sender);

4. Fairness Verification

// Frontend tracks fairness proof
setFairness({
  seed: seedNumber,
  guess: guessNumber,
  commitment: sha256(seed),
  txHash: tx.hash
});

Technical Implementation

Frontend Architecture

Key Components:

PlayDice.js: Handles user interaction, entropy collection, and game submission
DiceResults.js: Manages encrypted result display and decryption
useDiceGame.js: Custom hook managing contract interactions and FHEVM SDK
useWallet.js: Wallet connection and network management

State Management Flow:

// Game state in useDiceGame hook
const [encryptedState, setEncryptedState] = useState({
  lastDiceRoll: '0x',
  playerGuess: '0x',
  winnerStatus: '0x'
});

const [decryptedState, setDecryptedState] = useState({
  lastDiceRoll: null,
  playerGuess: null,
  winnerStatus: null
});

Smart Contract Architecture

Core State Variables:

euint32 private _lastDiceRoll;    // Encrypted dice result
euint32 private _playerGuess;     // Encrypted player guess
ebool private _isWinner;          // Encrypted win status

Access Pattern:

Play: Submit encrypted inputs with entry fee
Compute: Generate dice roll and check winner (all encrypted)
Store: Save encrypted results with player access permissions
Decrypt: Player can decrypt their own results off-chain

Prerequisites & Setup

Requirements:

Node.js 18+ (LTS version)
MetaMask wallet
Sepolia testnet ETH

Quick Start:

# 1. Clone and setup
git clone https://github.com/chimmykk/fhevm-dice-dapp
cd fhevm-dice-dapp
npm install

# 2. Configure environment
cp .env.example .env
# Add your MNEMONIC and INFURA_API_KEY

# 3. Build and test
npx hardhat compile
npx hardhat test

# 4. Deploy (choose one)
# Local development:
npx hardhat node  # Terminal 1
npx hardhat deploy --network localhost  # Terminal 2

# Or deploy to Sepolia:
npx hardhat deploy --network sepolia

# 5. Start frontend
cd frontend
npm install
npm start

How to Play

Connect Wallet: Connect MetaMask to Sepolia testnet
Generate Entropy: Hover mouse over dice area for 2 seconds
Make Guess: Click a dice face (1-6) or let system choose randomly
Roll Dice: Click "Roll Dice" to submit encrypted guess
Decrypt Results: Click "Decrypt All" to reveal your outcome

Testing & Verification

Automated Testing:

npx hardhat test

Manual Testing:

# Play via CLI (choose your network)
# For Sepolia testnet:
npx hardhat --network sepolia task:play-dice --guess 4 --seed 12345

# For local hardhat node:
npx hardhat --network localhost task:play-dice --guess 4 --seed 12345

# View results
# Use the frontend to decrypt and verify results

Frontend Testing:

Test wallet connection
Verify entropy collection
Check encryption/decryption flow
Validate game fairness

🎲 FHEVM Dice Game Mastery

Test your understanding of the complete FHEVM dice game implementation!

Question 1 of 6Randomness & Entropy

How is randomness generated in the FHEVM dice game?

Live Demo

Deployed Contract (Sepolia):
- CDN Version: 0xA6915c97f44f1708e37dD871CCE991fD6D45E943
- SDK Version: 0x31630746e870D3D57e8B708ac479f269e1Da4c10
Frontend Demos:
- CDN Integration
- SDK Integration

Learn More

Zama Documentation: Complete FHEVM guide
FHEVM Hardhat Plugin: Development tools
FHE Solidity Library: Smart contract development

Contributing

Fork the repository
Create a feature branch
Make your changes
Add tests
Submit a pull request

Built with ❤️ using Zama FHEVM - Where Privacy Meets Smart Contracts
